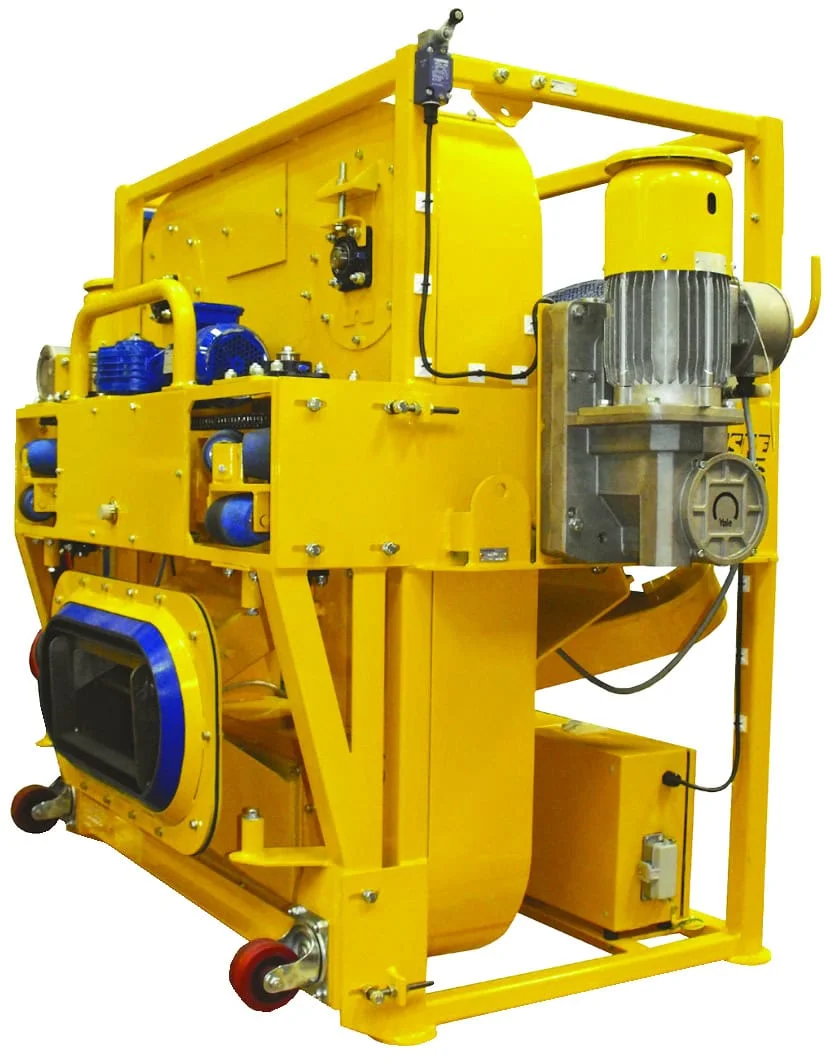

Vertical Autoblast

The Vertical Blast Machine Series has been developed mainly for the preparation of vertical steel surfaces. The design of the blast head provides recovery of abrasive by kinetic energy and vacuum providing major benefits over conventional methods.


V2 Series Vertical Shot Blaster


    • Unique radially traversing design for vertical blasting internal storage tank surfaces
    • 305mm (12″) blast width
    • Blasts up to 2m (80″) from the floor
    • Can be used in oil storage tanks

Features

  • Blast unit constructed of manganese steel
  • Self propelled variable speed drive allows complete operator control
  • Dust free operation
  • Dismantles to fit through 600mm access hole in storage tank
  • Magnetic roller clamp secures unit to steel structure

Product Description:

SPE V2 Series Vertical Shot Blasters

This type of vertical shot blaster is designed to blast clean the internal shell of oil tanks up to 2m from the floor. The blast clean head is mounted on a mobile framework and the V2 is driven around the perimeter of the tank during the blast cleaning process. As one pass is completed, the blast head is raised inside the framework and the process repeated. This is the only system manufactured worldwide specifically for this purpose.

Typical Applications:

  • Removal of old coatings
  • Steel preparation to SA3 standard
  • Dust free operation
  • Dismantles to fit through 600mm access hole in storage tank
  • Magnetic roller clamp secures unit to steel structure

V3 Series Vertical Shot Blaster

  • High performance of cleaning of vertical surfaces including internal and external storage tank walls
  • 406mm (16″) blast width
  • Can be used on oil storage tanks

Features:

  • Blast unit constructed of manganese steel
  • Self propelled variable speed drive allows complete operator control
  • Dust free operation
  • Blast internal and external walls
  • Magnetic roller clamp secures unit to steel structure

Product Description:

SPE V3 Series Vertical Shot Blasters

The SPE V3 series is designed to blast clean internal and external storage tank walls. The unit is suspended by a rigging system or crane and can be operated by one person using a remote control on ground level. A high powered magnetic roller clamp arrangement holds the V3 to the steel surface eliminating abrasive loss and dust emission. The V3 offers a highly productive and environmentally safe alternative to conventional open blasting methods.

Typical Applications:

  • Removal of old coatings
  • Steel preparation to SA3 standard
  • Removal of corrosion and mill scale
  • Shipping
  • Petrochemical
  • Storage Tanks
