ARCMASTER 300

Thermal Spray


What Is Thermal Spray?


Thermal spray is a method that sprays a surface (usually metal) with a material to make it stronger, more wear-resistant, rust-proof, heat-insulating, or electrically conductive.


What Are the Steps Included in the Thermal Spray Process?


Nowadays thermal spray coatings are widely used in various industries such as aerospace, automotive, oil & gas, power generation, medical devices, marine, electronics, manufacturing, steel and mining and more. Here are some steps in the thermal spray process is as follows:


    • Surface Preparation: To guarantee coating adhesion, clean and roughen the surface (typically with abrasive blasting).


    • Material Selection: Depending on the application, select the right coating material (alloy, metal, or ceramic).


    • Heating the Material: Melt or soften the coating material by heating it with a thermal spray technique (arc, flame, plasma, or HVOF).

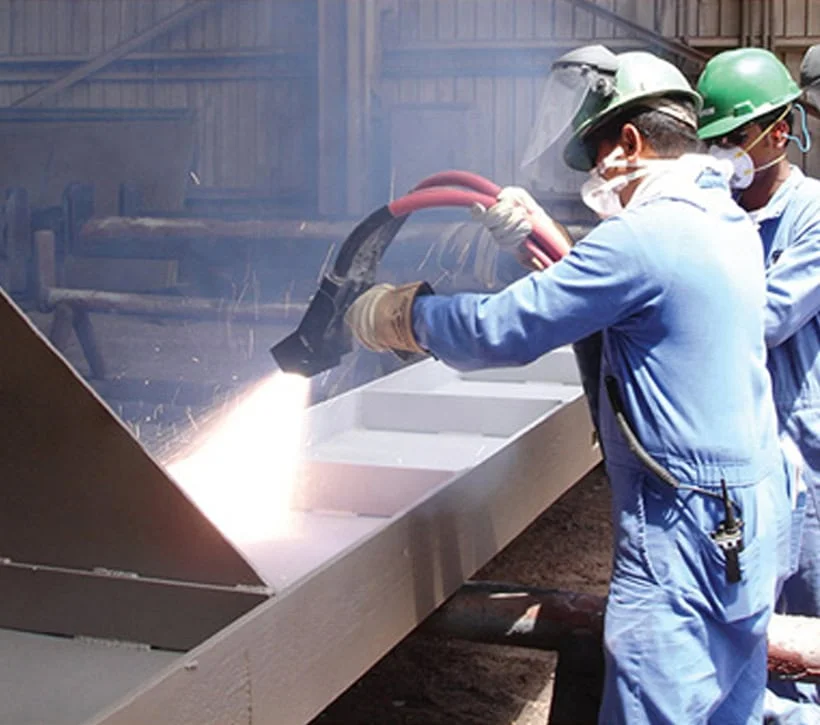

    • Spraying: To apply the molten substance to the prepared surface, use compressed air or high-speed gas.


    • Coating Build-Up: Apply several coats to increase the coating’s desired thickness.


    • Post-Treatment (Optional): Depending on the application, complete with sealing, polishing, or grinding.



Types of Thermal Spray Coating Methods


    • Arc Spray:


    • Flame Spray:It uses a fuel gas and oxygen flame to melt coating material, which is subsequently atomized and sprayed to surfaces, making it suitable for automotive and wear-resistant coating applications.


    • Plasma Spray:It creates a high-temperature plasma jet to melt and accelerate coating powders, resulting in dense and durable coatings suited for aerospace and industrial applications.


    • High-Velocity Oxy-Fuel (HVOF):This burns oxygen and fuel gas to produce a high-speed flame that melts and propels coating material, offering coatings with exceptional hardness and wear resistance for aerospace and industrial uses.



Benefits of Thermal Spraying


    • Thermal spraying protects surfaces from wear, rust, and heat, making parts last longer.
    • It reduces the need for frequent repairs or replacements and saves money.
    • Thermal spray coatings work on many metals, ceramics, and plastics.
    • By using quality thermal spray coatings we can improve surface strength, reduce friction, and increase resistance to heat and electricity.
    • You can choose the right coating thickness and material for your needs.
    • Thermal spray coating is environmentally friendly as it uses less material and reduces material waste.

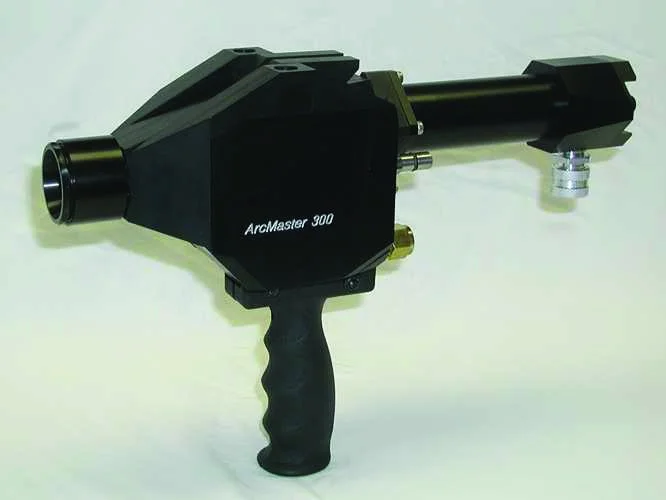

Key Features of the Thermal Spray Arc Spray Gun

  • Lightweight gun (4.2 lb / 1.9 kg)
  • Durable design for harsh industrial environments
  • Spray head with interchangeable nozzles, supporting a wide range of atomizing air flows (including a high-velocity option) to meet the required coating structure
  • Pull mechanism with a powerful Swiss made DC motor with planetary gear head enclosed in a dust proof protective housing provides smooth feeding of wire stock and ensures a stable arc.
  • Streamlined ergonomic design
  • Hardened steel wire guides
  • Wire feed rollers provide reliable wire grip for slip-free operation with both hard solid and malleable cored wires
  • Maintenance free worm gearbox with life expectancy of 10,000-12,000 hours
  • Tungsten-copper alloy contact tips

At Euroblast, we specialize in high-quality thermal spray coatings that help preserve and extend the life of your equipment and materials. Thermal spray is a method that melts coating ingredients and sprays them onto surfaces to form a strong protective layer. This approach is effective against wear and tear, corrosion, and other forms of damage. We use cutting-edge technology and methods to ensure that our coatings exceed the highest requirements. Whether you need coatings for industrial machines, aircraft parts, or automobile components, we have the solution. Euroblast is committed to assisting our clients in maintaining the best possible condition of their assets. Trust us to deliver the best thermal spray services in UAE for your requirements!
